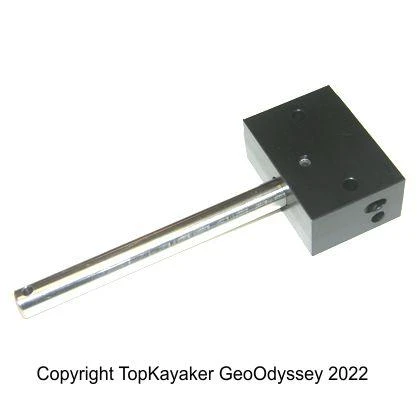

Classic Dagger Rudder Pin And Block

Best used as a replacement part for the central block and pin for a Classic Dagger brand rudder assembly, circa mid-to-late 1990s to 2003. A new Classic Rudder Pin Washer is recommended for your restoration.

Overall length, including pin, is 4 7/8 inches. Block is 1 7/8 front to back, 3/4 inches thick, 1 1/4 inches high. A single hole is drilled on the end of the pin (for a Rudder Pin Ring). Pin Length, from bottom of block to rudder pin hole is 3 1/2 inches. The depth of the rudder bracket should not exceed 3 1/4 inches. Two 3/16 inch holes (1 5/16 inches on center) pass thought, side to side. and Two rudder rope holes are machined into the block. Take Note! These holes face forward. You will have to disassemble your rudder and reassemble it without instructions, but it is easy to do.

See more info at the related article: Replacement of Classic Rudders. RBAP
